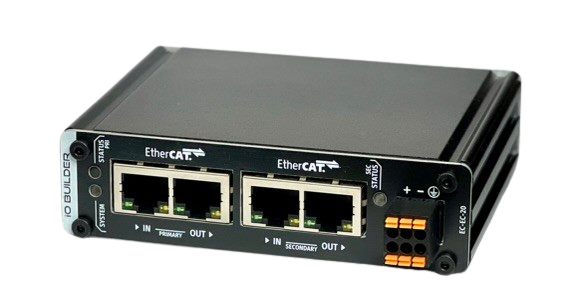

EtherCAT Master Bridge

The IO Builder EtherCAT Bridge is a data routing tool designed to resolve the communication problem in EtherCAT's master-slave topology, which doesn't allow direct connection between two EtherCAT masters. This device functions as an intermediate gateway, utilizing two EtherCAT slave controllers to enable data flow between the IO Builder Server and an additional EtherCAT master. It effectively acts as a bridge, channeling information from one master to the other.

This product is no longer available.

By appearing as a slave to each EtherCAT master, the bridge ensures seamless communication, effectively routing data from one master to the other. The device is configured with a primary and a secondary side to facilitate connections. You simply need to connect your IO Builder Server to the primary side and the other EtherCAT master to the secondary side. With the IO Builder EtherCAT Gateway Bridge, managing the flow of data between two EtherCAT masters becomes a straightforward process, offering increased efficiency in your EtherCAT network operations.

Users are unable to configure the process data image. A unique firmware and slave EEPROM image must be utilized for every distinct use case. Contact us for more information.

Specifications

Operating Voltage	8-27 VDC
Front Ports	4x Ethernet RJ45 100BASE-TX (100m) 2x EtherCAT Primary IN/OUT 2x EtherCAT Secondary IN/OUT DC IN
Back Port	Firmware Update USB-C
Mounting	DIN Rail Mount
Dimensions	11cm x 8cm x 3cm
Weight	~250g
Operation Temperature	0-50°C
Storage Temperature	-15-80°C
